Objective

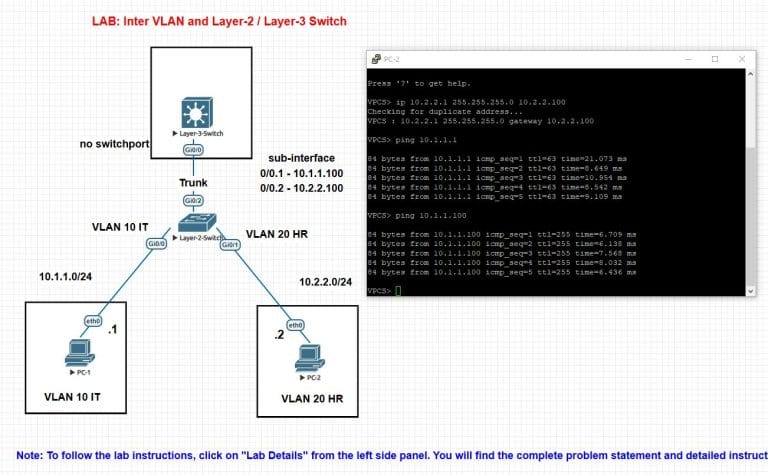

Cisco network setup consisting of both Layer 2 and Layer 3 switchesAssign an IP address to the Layer 3 switch.
Enable routing on the Layer 3 switch.
Create VLANs and assign them to specific ports on both Layer 2 and Layer 3 switches.
Requirements:
Assign IP Address to Layer 3 Switch:
Choose an appropriate IP address and subnet mask for the management interface of the Layer 3 switch.
Enable Routing on Layer 3 Switch:
Enable IP routing to allow the Layer 3 switch to route traffic between different VLANs.
Create VLANs:
Define multiple VLANs (e.g., VLAN 10 for the Sales department, VLAN 20 for the HR department).
Assign these VLANs to specific ports on both Layer 2 and Layer 3 switches.
Ensure inter-VLAN routing is configured to allow communication between VLANs on the Layer 3 switch.
